28KW 500mm 90pcs/Min PP Non Woven Bag Making Machine

28KW 500mm 90pcs/Min PP Non Woven Bag Making Machine

  • High Light

    500mm PP Bag Making Machine


    90pcs/Min PP Bag Making Machine


    28KW Fabric Bag Making Machine

  • Machine Type
    Non Woven Bag Forming Machine
  • Bag Type
    Non Woven Shopping Bag
  • Operation Mode
    Computer Touch Screen
  • Total Power
  • Warranty
  • Bag Height
  • Bag Process
    One Time Forming Ultrasonic Sealing
  • Certification
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SET
  • Packaging Details
    Shrink film and wooden case packing
  • Delivery Time
    30 days
  • Payment Terms
    T/T,L/C at sight
  • Supply Ability
    40 set/month

28KW 500mm 90pcs/Min PP Non Woven Bag Making Machine

Muti - Functional PP Non Woven Fabric Bag Making Machine , Non woven shopping bag


Model C700
Non woven bag Type Flat Bag T-shirt Bag Shoes bag
Non wove bag width (mm) 100-700mm 300-600mm 300-600mm
Non woven bag length (mm) 300-750mm 200-480mm 300-650mm
Non woven bag gueest (mm) 40-90mm 40-120mm 40-80mm
Bag making speed (pcs/min) 20-90pcs/min 20-90pcs/min 20-90pcs/min
Materials Thiness (g/m2) 35-90GSM 35-90GSM 35-90GSM
Rewinding material diameter 1000mm
Rewinding material width 1600mm
Machine Weight 4000kg
Power Supply 380V,50HZ,ThreePhase
Total Power 16kw
Machine Size 14000x2100x2000mm(I Model)
Sealing part 10Set Top quality ultrasonic



Supply Ability
Supply Ability:
30 Set/Sets per Month



Quick Detail:
1). Non-Woven Soft Handle Bag Sealing Equipment
2). Muti-Functional
3). Produce Different Kinds Of Bags
4). High Production Speed

1.Machine suitable for PP non woven fabric, regeneration non woven fabric,lamination non woven fabric etc
2.The material thiness range is: 30-100GSM
3.High speed automatic non woven bag making machine/ultrasonic sealing way for shopping bag can make non woven fabric shopping bag, handle bag,t-shirt bag,colth bag,file bag,flat bag,box bag,vest bag etc. It can meet the demand of market.
4.The non woven fabric is an reproducible,environmental materials, it have large market in future.


1. Ultrasonic device to seal bags in good quality
2. Computer control, automatic feeding, automatic counting, automatic stopping.
3. Easy to operate and strong sealing effective

4. Photocell to track the color
5. Equipped with servo motor
6. Equipped auto pneumatic punching device

7.Equipped with tension control device.
8. Machine has got CE Certification, SGS Certification, company has obation ISO9001:2008 certification
Company Details


Our company has an area of 8,000 square meters and 130 on-the-job employees. We have four production lines in total. They are divided into non-woven bag making machine lines, soft handle sealing machine lines, flexo printing machine lines and paper cup machine lines. We can ensure our delivery time within 15 working days.
Our strong and professional sales team will provide you with details of machine introduction. According to each customer's different requests, we provide individual and special machine solutions.

Bag Making Process
ONL-XA700 CE standard full automatic non woven bag making machine for box type bag

Bag Sample

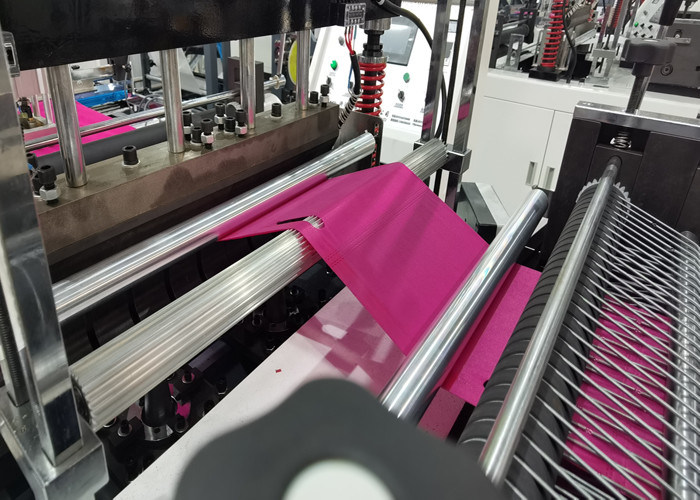

28KW 500mm 90pcs/Min PP Non Woven Bag Making Machine 1
28KW 500mm 90pcs/Min PP Non Woven Bag Making Machine 2
