Main parameters:
Type | ONL-XB700 | ONL-XB800 |
Production speed | 40-100pcs/min | 40-100pcs/min |
Bag width | 200-580mm | 200-680mm |
Bag length | 100-800mm | 100-800mm |
Loop handle length Loop handle thickness |
370-600mm 60-120G.S.M |
370-600mm 60-120G.S.M |
Bag making thickness | 35-100G.S.M | 35-100G.S.M |
Power supply | 380V/220V 50Hz | 380V/220V 50HZ |
Total power | 18KW | 22KW |
Overall size | 12000x2300x2000mm | 12000x2400x2000mm |
Machinery Advantage:
1. Ultrasonic device to seal bags in good quality
2. Computer control, automatic feeding, automatic counting, automatic stopping.
3. Easy to operate and strong sealing effective
4. Photocell to track the color
5. Equipped with servo motor
6. Equipped auto pneumatic punching device
7.Equipped with tension control device.
8. Machine has got CE Certification, SGS Certification, company has obation ISO9001:2008 certification
Machinery Device:
1.One set computer with touch-screen system.
2. One the programmable controller.
3. Six sets of ultrasonic system.
4. Traction inverter to control the main motor
5. Micro-motor four.
6. Two sets of step motors.
7. High quality ultrsonic sealing device from Germany to make sure the bag qulaity
Machinery Features:

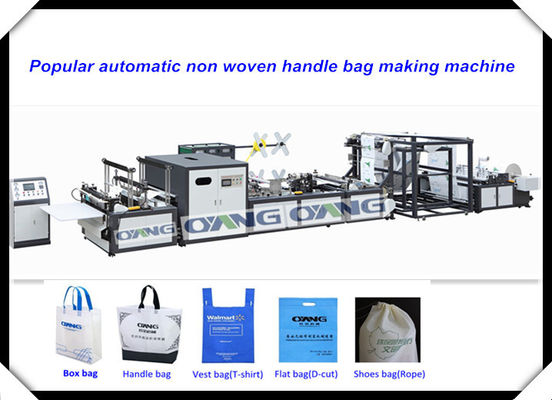

Computer control CE standard non woven bag making machine high speed is the newest and lastest product we reseached , it can sealing the bag handle automatic, no need sepearate handle sealing machine, the sped is fast, speed can reach 60-100pcs/min, it's an idea equipment to make the non woven sealing bag.
Bags can make:
1-non woven hadle bag
2-non woven D-cut bag
3-non woven box bag with handle
4-non woven T-shirt bag
5-non woven shoes bag
6-non woven zipper bag
7-non woven laminating bag
The machine details:
