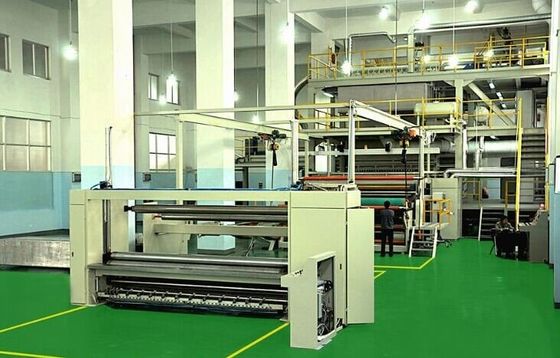

Single Beam PP Non Woven Fabric Making Machine

Single Beam PP Non Woven Fabric Making Machine

  • High Light

    non woven fabric cutting machine

    ,

    pp non woven fabric machine

  • Model
    ONL-1600S,ONL-2400S;ONL-3200S; ONL-4200S
  • Width
    1600 To 4200mm
  • Speed
    0~150m/min
  • Fabric GSM
    9~250 G
  • Place of Origin
    Zhejiang
  • Brand Name
    OUNUO
  • Certification
    CE
  • Model Number
    ONL-1600S,ONL-2400S;ONL-3200S; ONL-4200S
  • Minimum Order Quantity
    1 SET
  • Packaging Details
    Wooden case; carton
  • Delivery Time
    150~180 days
  • Payment Terms
    T/T,L/C at sight
  • Supply Ability
    20 set/month

Single Beam PP Non Woven Fabric Making Machine



Single Beam PP Non Woven Fabric Making Machine With 4200mm







Parts of  PP non woven fabric making machine:



Recycle extruder ----> Main extruder ----> Filter ----> Metering pump ----> Monomer suction device ---> Spinning box ----> Quenching air chamber ----> Stretching device ----> Web former ----> Calender ---->Winder ----> Slitter



Spun-laid process and technical flow chart:



Additive(Recycling offcut fabric) ----> Raw materia l----> Melting ----> Filtering ----> Measuring ----> Spinning ----> Cooling ----> Stretching ----> Web forming ----> Calendering ----> Winding ----> Cutting----> Final product





specifications


Model No. ONL-1600S ONL-2400S ONL-3200S ONL-4200S
Working Width 1600mm 2400mm 3200mm 4200mm
Fabric GSM 9~250 9~250 9~250 9~250
Power Input 200KVA 250KVA 300KVA 450KVA
Consumption 130KW 180KW 200KW 260KW
Annual Output 1500T 2400T 3000T 5000T
Embossing Pattern Diamond, Oval, Cross,Line





Fabric Usage



The equipment products non woven fabric with polypropylene(PP), adopts the technology of air drawing in to the web forming by negative pressure to make the PP spun bonded non woven fabric, the product is feature by uniform cover, great intensity, good breathable feature and good feeling, It is widely used for medical, household, hotel accessories, beauty care disposable product, Agricultural cover, clothes package and architecture.
