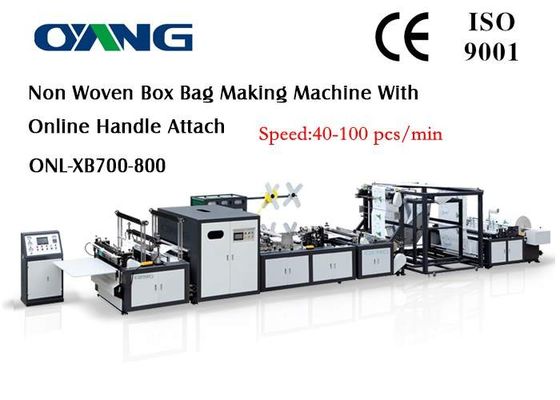

Multi Function High Speed Non Woven Bag Making Machine With Handle Fix Device

Multi Function High Speed Non Woven Bag Making Machine With Handle Fix Device

  • High Light

    non woven fabric bag making machine

    ,

    automatic bag making machine

    ,

    18KW non woven bag d cut machine

  • Production Speed
    40-100PCS/Min
  • Total Power
    18KW
  • Overall Size
    12000×2600×2000mm
  • Computerization
    Computerized
  • After Sale Service
    Engineer Available To Overseas Supporting
  • Color
    White And Gray
  • Place of Origin
    Zhejiang ,China (Mainland)
  • Brand Name
    OUNUO
  • Certification
    CE
  • Model Number
    ONL-XB700-800
  • Minimum Order Quantity
    1SET
  • Price
    Negotiation
  • Packaging Details
    wooden case, packages,shrink film
  • Delivery Time
    30 days
  • Payment Terms
    L/C, T/T at sight

Multi Function High Speed Non Woven Bag Making Machine With Handle Fix Device



Multi Function High Speed Non Woven Bag Making Machine With Handle Fix Device



Bag Making Procedure:



Raw material - Bag mouth fold - thermal bonding - side fold - bottom sealing - loop handle fix - --

Thermal bonding---edge cut---bag cut---collection



Performance and Characteristics:



1. This machine adopt Taiwan touch screen computer display, PLC computer program which can be edited.

2. Auto meter counting &stopping, could freely setting number.

3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.

4. High voltage static processor, Auto constant temperature heating controller.

5 It could control auto pneumatic handle punching on machine.

6. Unwinding magnetic powder tension control with manual, Auto side-correction control.

7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing,

once full completed, fast speed, east to operate, firm sealing, beautiful and decent.



Advantage:



1. Ultrasonic sealing device to seal bags in good quality

2. Computer control, full automatic feeding, automatic counting, full automatic stopping.

3. Easy to operate and strong sealing effective

4. Photocell to track the color

5. Equipped with servo motor

6. Equipped auto pneumatic punching device

7.Equipped with tension control device.

8. Machine has got CE Certification, SGS Certification, BV Certification, company has obation

ISO9001:2008 certification, High quality, good machine price.



Packaging & Delivery



Packaging Details: Cotton Pearl And Plastic Film  Or  Wooden box

Delivery Detail: 15 days after receiving order deposit.



About us:



Wenzhou All well Machinery Share Co.,Ltd. is a full-new company. In order to create more

economic and offer the one-step service, we collect all the knowledge and resource to s

ervice our customers with complete solution in Non woven Industry in our field. Including the Non

woven Production Line, Non woven Bag Making Machine and Non woven Printing Machine, which

we had exported to all over the world in the past years.

To work, practice conscience first. We always carries a grateful heart to service each customer

carefully. Creating value for customers is the only way to achieve self-worth. Accompany with All well,

there will be more moving and less worries on your way to be rich.



Please send us inquiry for more information, we will supply you good machine price & good after s

ales service.



Main Technical Variables:

Type

ONL-XB700

ONL-XB800

Production Speed

40-100PCS/MIN

40-100PCS/MIN

Bag Width

200-580mm

200-680mm

Bag Length

100-800mm

100-800mm

Loop handle length

370-600mm

370-600mm

Loop handle thickness

60-120G.S.M

60-120G.S.M

Bag making thickness

35-100G.S.M

35-100G.S.M

Power supply

220V  50Hz

220V  50Hz

Total power

18KW

22KW

Overall size

12000×2600×2000mm

12000×2700×2000mm
