High Performance 70-130 GSM Non Woven Box Making Machine Computerized
Contact : Sara Yang
Mob : 0086-18767715501(whatsapp , viber , wechat)
Skype : sara.yang64
Brief Introduction:
-This machine is our a big innovation in non woven bag making machine industry.
-We launched this new design at 2014,and now it is widely used in Chinese
market for wine,drink,gift and others package.
-It can directly forming non woven box bag with loop handle automatically.
-The finished bag with no need for reversal.
-Its a perfect machine for win bag,drink bag and shopping bag production.
Technician parameter:
Model | LEADER |
Production Speed | 25-35PCS/MIN |
Bag Size |
10-18cm (Gusset) 24-40cm (width) 22-40cm (high) |
Loop Handle Range | 38-52cm |
Air Pressure Request | 1.2m³/min ,1.0Mpa |
Total Power | 28KW |
Power Request | 380V ,50Hz, 3 Phase |
Overall Size | 7100*2600*3300mm |
Total Weight | 7000KGS |
Laminated Non Woven Bag Made By Leader Compares To Other Bags:
Evaluation For One Time Off Forming Non Woven Bags:
1-Eco-friendly,durable,easy to take with recycle,water proof and moisture resistant .
2-Good looking and economic .
3-Low cost and few worker required .
4-High daily output.
5-It is a good future to replace the manually sewing the box bag.
Advantages And Characteristics
1.The World First Design
-The world’s initiative bag making machine with China national patent,forms a box bag by one time.
2.Efficent Productivity
-Only need 2 operators,greatly saved the labor cost. And ensured big order’s timely delivery with
10% drop in overall market price.
3.Durable
-Since there is no needle damage on the cloth,the fastness were further enhanced pull strength
increased from 10kg(handle sewing bags) to 20kg.

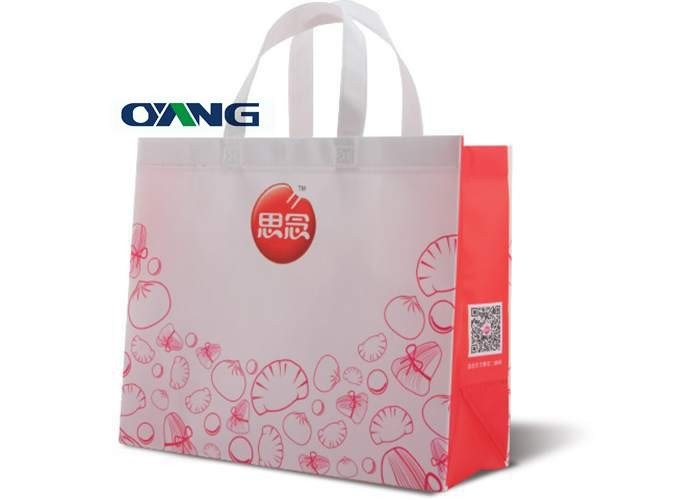

4.Bags Samples
