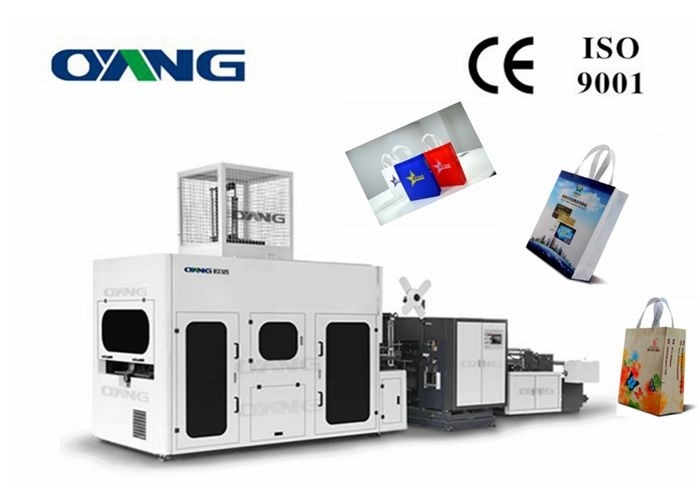

Ultrasonic Automatic Non woven Box Bag Making Machine High Speed 40-100pcs / min
Product Application
This machine takes laminated PP non woven fabric as raw materia, only make box type laminated non woven
bag. It adopt touch screen controller. You can easily adjust the bag size and loop handle size.
Latest full automatic nonwoven bag making machine in Wenzhou factory
Non-Woven fabric is made of the polypropylene granules through the non-woven machinery blowing out,as know as PP nonwoven fabric ,due to the material easy to degrade ,so called environmental protection material ,and now use widely in the market .And in the soon future, it will be leader instead of plastic bag.
Material
1. Laminated Non Woven Fabric. (PP non woven fabric laminated with BOPP film. Before lamination, using
rotogravure printing machine printing the BOPP film)
2. PP Non Woven Fabric With Printing
Compare with other model bag making machine, what is the different of Leader?
It is different technology. A new market to take place of paper bag, manual box bag. Beautiful and more
efficient.
In general case, non woven box bag made by machine need to turn around. But the leader made new non
woven bag don’t need turn. It is one time finished with automatic folding part.
Main Technical Variables: |
||
Type |
Leader |
|
Max Unwinding Width |
1350mm |
|
Production speed |
40-60pcs/min |
|
Bag Size |
Gusset |
90-200mm |
Width |
240-450mm |
|
High |
220-500mm |
|
Loop handle length |
370-520mm |
|
Air Pressure Request |
1.2m3/min, 1.0Mpa |
|
Total power |
28KW |
|
Power Request |
380V,50Hz, 3Phase |
|
Overall size (L*W*H) |
7100*2600*3300mm |
|
Total Weight |
6500KGS |
Selling Units: | Single item |
Single package size: | 710X260X330 cm |
Single gross weight: | 6500.0 KG |
Package Type: | wooden box |
