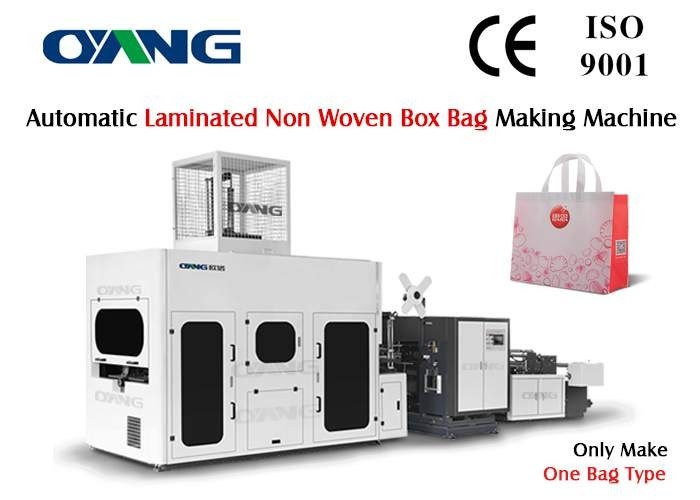

Laminated Non Woven Box Bag Making Machine / Bag Manufacturing Machine
Product Application

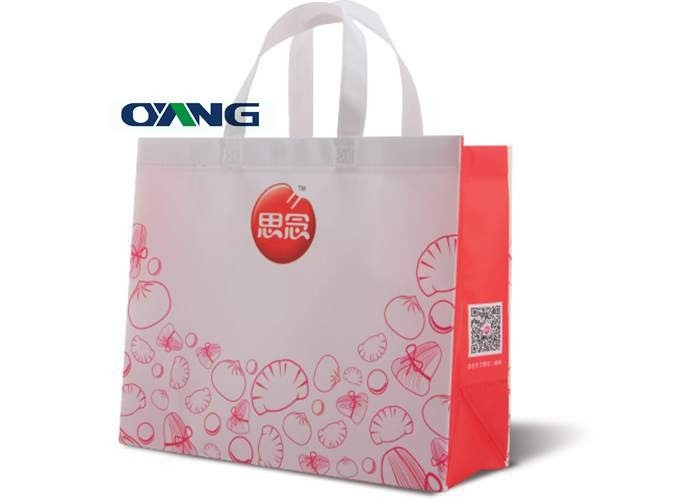

This machine takes laminated PP non woven fabric as raw materia, only make box type laminated non woven
bag. It adopt touch screen controller. You can easily adjust the bag size and loop handle size.
Material
1. Laminated Non Woven Fabric. (PP non woven fabric laminated with BOPP film. Before lamination,
using rotogravure printing machine printing the BOPP film)
2. PP Non Woven Fabric With Printing
Compare with other model bag making machine, what is the different of Leader?
It is different technology. A new market to take place of paper bag, manual box bag. Beautiful and more
efficient.
In general case, non woven box bag made by machine need to turn around. But the leader made new
non woven bag don’t need turn. It is one time finished with automatic folding part.
Main Technical Variables: |
||
Type |
Leader |
|
Max Unwinding Width |
1350mm |
|
Production speed |
40-60pcs/min |
|
Bag Size |
Gusset |
90-200mm |
Width |
240-450mm |
|
High |
220-500mm |
|
Loop handle length |
370-520mm |
|
Air Pressure Request |
1.2m3/min, 1.0Mpa |
|
Total power |
28KW |
|
Power Request |
380V,50Hz, 3Phase |
|
Overall size (L*W*H) |
7100*2600*3300mm |
|
Total Weight |
6500KGS |
