YT-6 Six Color Flexographic Printing Machine With CE
YT-61200/61400/61600 Non Woven Flexographic Printing Machines (6 color)
This machine is ideal equipment for non woven fabric printing. Adopt rubber plate or resin plate to printing non woven fabric with water-based Ink. More eco friendly and machine using automatic magnetic tension control system to ensure uniform tension. roll to roll printing supply more higher effective capacity.
| Main Technical Variables | |||
| Type | YT-61200 | YT-61400 | YT-61600 |
| Printing Width | 1160MM | 1360MM | 1560MM |
| Printing Thickness | 100-940MM | 100-940MM | 100-940MM |
| Plate Thickness | 2.38 MM | 2.38 MM | 2.38 MM |
| Speed | 10-50M/MIN | 10-50M/MIN | 10-50M/MIN |
| Overall Size | 5000X2200X2500 | 5000X2400X2500 | 5000X2600X2500 |
1. Figure out the fabric width when you get a bag order.
2. Purchase the special width fabric rollers or slitting the general one into right width.
3. Printing according to your customers' requirement.
 |
|
| Flexographic Printing Effect |
Screen Printing Effect |
Competitive Advantage:
| 1 |
Low speed and full load startup; stable running by tension control when increasing and decreasing speed;noise is decreased |
| 2 |
Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop. |
| 3 |
The special made modulus angular gears adopted; accurate printing size and full printing specifications ( 6.35mm is a spec) |
| 4 | With single doctor blade and circulating pump |
| 5 |
The grouped and controlled bottom roller processed with Germany particular steel materials processed with special techniques and electrically gilded with 0.1mm hard chromium protective layers |
| 6 | With hard chroming anilox roll |
| 7 |
The machine use hydraulic printing-roll loading system which can automatically load printing rolls and run inks after the machine alarm working signal. |
| 8 | Good quality printing |
| 9 | Brilliance color appearance. |
| 10 | The operation is easier and more convenient,the register is more accurate,and the lifespan is also longer |
|
|
Feeding Part
Function: Air Shaft Winding Automatic Loading
|
|
Correcting Deviation Device Using photoelectric eye to correct deviation automatically.
|
|
|
|
Printing Unit
Group: Six Printing Way: Plating roll, Plate roll, Net roll, Peel roll
|
|
Heating And Dryer Unit Fan drive and heating |
|
|
|
Rewinding Unit
Air Shaft Rewinding Automatic Up And Down Loading Magnetic Tension Control Device |

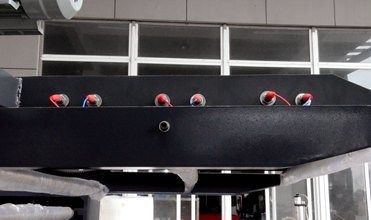

Machine Pictures
Our products are sold all over the world, you can rest assured.
