Latest High Speed ONL-M1300 High Speed Non Woven Coating And Lamination Machine With CE
ONL-M1300 High Speed Non Woven Coating And Lamination Machine
This machine is used for producing self-adhesive products, such as self-adhesive tape, double-adhesive tape, foam tape, aluminum foil tape, clean tape, masking tape, etc. It also suitable for laminating different materials, such as non-woven, filter materials, shoes materials, medical materials, label, film, etc.
This machine is applicable to professional non woven , film, the paper class material intercept. Widely used in bag making, printing and packaging industry, etc.
Main Technical Variables |
||||
Model |
ONL-M1100 |
ONL-M1300 |
ONL-M1600 |
ONL-M1800 |
Extrusion Die Width |
1200MM |
1400MM |
1800MM |
2000MM |
Coating Width |
500-1000MM |
600-1250MM |
800-1500MM |
900-1700MM |
Max. Coating Speed |
10-150M/MIN |
10-150M/MIN |
10-150M/MIN |
10-150M/MIN |
Coating Thickness |
0.01-0.03MM |
0.01-0.03MM |
0.01-0.03MM |
0.01-0.03MM |
L/d Ratio For Screw |
32:1 |
32:1 |
32:1 |
32:1 |
Rewinding Roll Diameter |
Ø1200mm |
Ø1200mm |
Ø1200mm |
Ø1200mm |
Overall Size (MM) |
12500X7000X3200 |
13000X8000X3200 |
12000X9000X3200 |
13000X12000X3200 |
Total Power |
70KW |
80KW |
100KW |
130KW |
Mirror Cool Roll Diameter |
Ø510MM |
Ø510MM |
Ø510MM |
Ø510MM |

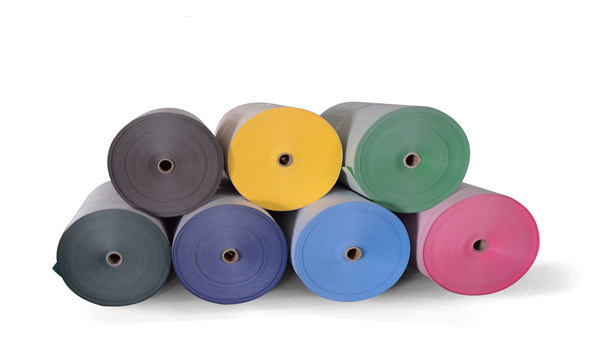

Adopt Material |
Non wovenBOPPAluminum foil |
![]() |
Roll To Roll Lamination |
![]() |
Laminated Non Woven Box Bag After lamination the non woven fabric roll with BOPP film, the finished roller can as rawmaterial for Leader -10S non woven box bag making to make the box bag.
Bopp film with rotogravure printing effective before lamination |
![]() |
![]() |
Rotogravure Printing Machine For Bopp Film Printing |
Leader - non woven bag making machine for Laminated non woven box bag making |
![]() |
Double Feeding Part Function: Automatic loading, magnetic power tension controller, Automatic correcting deviation system.
|
Correcting deviation device Ensure the accuracy of double layer lamination |
![]() |
![]() |
Corona Equipment Adopts dust proof ,interference-proof stucture, pneumatic switch cover equipment, achieve discharging ozone.
|
Extrusion Equipment Car type extrusion machine T-type die head Automatic PE feeding equipment Oil hydraulic pump changes filter Aromatically |
![]() |
![]() |
Second Feeding equipment 360 degree feeding frame High tension control accuracy Double Air shaft
|
Extrusion and compounding equipment Three roller compounding mechanism Peeling off silicone roller High pressure blower sucks scrap edge quickly. Drived by one vector frequency electric motor |
![]() |
![]() |
Rewinding equipment (1).Surface rewinding (Double work-station ,Non-stopping)
|
Control unit (1).Frequency control of motor speed |
![]() |
