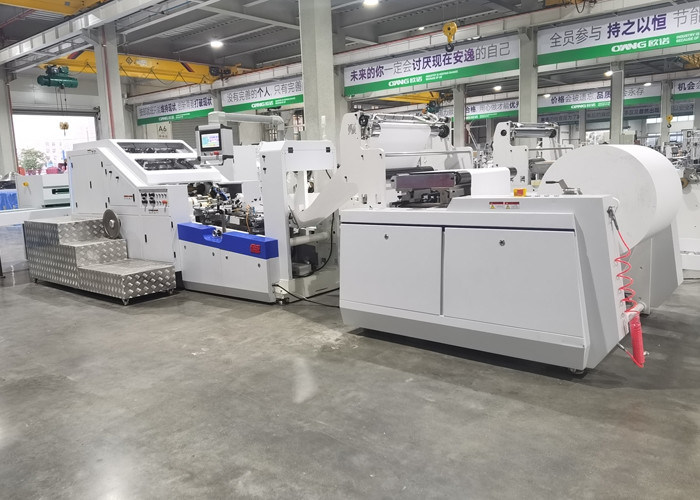

New World -B550 Roll Feeding Bread Paper Bag Making Machine
paper bag making machine Product introduction:
New world-B series automatic square bottom paper bag machine use paper roll in blank or printed as raw material, consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
paper bag making machine Main machine parameters:
|Model||New world -B220||New world -B330||New world -B400||New world -B550|
|Paper bag length||191-430mm||280-510mm||280-600mm||380-770mm|
|Paper bag width||80-200mm||150-330mm||150-400mm||220-550mm|
|Paper bag bottom width||50-120mm||70-150mm||90-200mm||100-210mm|
|Paper bag speed||100-180 pcs/min||100-160 pcs/min||100-160 pcs/min||100-150 pcs/min|
|Paper roll width||290-630mm||470-990mm||510-1230mm||630-1550mm|
|Roll paper diameter||1500mm||1500mm||1500mm||1500mm|
|Machine size||8600×2600×1900 mm||9500×2600×1900 mm||10700×2600×1900 mm||13000×2600×2000 mm|
paper bag making machine Performance characteristics:
1. Use MITSUBISHI JAPAN Touch Screen Human-Computer Interface, operate and control easily.
2. Adopt MITSUBISHI JAPAN Motion Control, integrated with optical fiber, ensure high speed running steadily.
3. MITSUBISHI JAPAN Servo Motor and Germany Original SICK Photoelectric Eye Correction, tracking printing bag accurately.
4. Raw material load adopt Hydraulic pressure cylinder up and down structure, unwinding adopt auto tension control.
5. Raw material unwinding EPC adopt TECHMACH (CHINA), Reduce adjustment time.
Wenzhou Ounuo Machinery Co., Ltd. is a professional manufacturer of non woven bag making machines, nonwoven printing machines, soft handle sealing machines and relevant equipment. We keep innovating and learning the latest technology, to provide you with quality products.
Our company has an area of 8,000 square meters and 130 on-the-job employees. We have four production lines in total. They are divided into non-woven bag making machine lines, soft handle sealing machine lines, flexo printing machine lines and paper cup machine lines. We can ensure our delivery time within 15 working days.
Our strong and professional sales team will provide you with details of machine introduction. According to each customer's different requests, we provide individual and special machine solutions.
In the future of environmentally friendly packaging industry,
We have excellent competitive products innovative environmentally friendly production solutions.
And based on close partnerships,
Create value and unlimited possibilities above the needs of our customers.
Q1. How long will your engineer reach our factory?
Our After-sales Specialist would contact with you, confirm the final scheduling according to your reasonable request.
Q2. How many days will you finish installing?
We will finish installation and training within 7-10 days.
Q3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets,SIM card, hotel, food, and also their salary 80USD one day per person.
Q4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
Q5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
Q6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
Q7. Does your engineer understand English?
Our engineers understand a little English. All of our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
Q8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our after sales specialist at any time.weour after-sales department with 30 engineers.Our engineers will take a solution video according your description.
Q9. How many workers do we need running those machines?
Except two for bag making machine, flexo printing machine, slitting machine, ultrasonic sewing machine, hydraulic punching machine only need one person for each.
