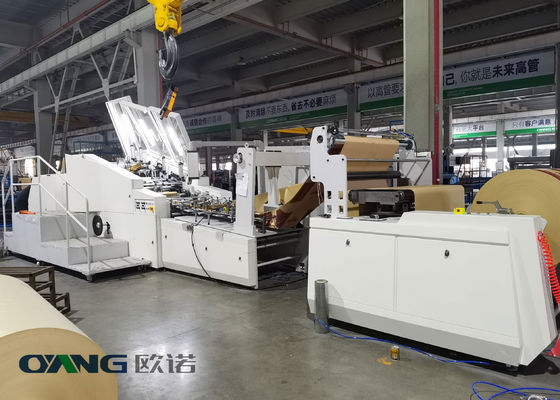

A330 Model High speed 100-150 pcs per /min Square Bottom Paper Bag Making Machine Shopping Bag Gift Bag
Contact : Sara Yang
Mob : 0086-18767715501(whatsapp , viber , wechat)
1.Machine Advantages
01-The forming template adopts symmetrical adjustable double-template structure (proprietary technology), so that users of different sizes of paper bags no longer need to change the template, which can effectively reduce the time of paper bag size adjustment and increase the machine capacity.
02-The special type design greatly improves the bag-making range of the machine, which can meet the customer's demand of producing extra-large hand-held paper bags.
03-The electronic control system imported from Japan is adopted to ensure stable and high-speed operation.
04-Material loading adopts hydraulic automatic lifting structure.The unwinding device adopts automatic tension control.
05-EPC material unwinding adopts ARISE correction to reduce material alignment time.
06-Servo Motor Control System 15pcs
2.Factory facility supporting on production
To ensure high precision standard on parts such as big drum,middle clip,side claws which need very high core density.We invest on high level CNC center.
3.Machine Technical Data
| SN | Item | Specification(A330) |
| 1 | Paper roll width | 470-1050mm |
| 2 | Paper Diameter | Φ1500mm (Max) |
| 3 | Paper core diameter | Φ76mm |
| 4 | Paper weight | 80-140gsm |
| 5 | Paper bag Width with handle | 200-330mm |
| 6 | Paper bag Width without handle | 150-330mm |
| 7 | Paper tube Length with handle | 280-430mm |
| 8 | Paper tube Length without handle | 280-510mm |
| 9 | Bottom width of paper bag | 80-180mm |
| 10 | Machine speed | 150pcs/min |
| 11 | Total power | 32KW |
| 12 | Machine weight | 16000KGS (40HQ*1) |
| 13 | Machine dimensions | L 14000* W 6000* H 2500mm |
Handle Size Range (5HD Twisted handle)
| SN | Item | Specification |
| 1 | Handle rope height | 102/115/125/140 |
| 2 | Handle patch width | 45-50mm |
| 3 | Handle patch length | 114.3mm |
| 4 | Handle rope diameter | Φ4-6mm |
| 5 | Diameter of handle patch paper roll | Φ1200mm |
| 6 | Handle patch paper roll width | 90-100mm |
| 7 | Rop Distance | 95mm |
| 8 | Handle patch weight | 100-140g |
4.Machine parts
| SN | Part | Picture |
| 1 | Paper material feeding and convey Unit |  |
| 2 |
Handle Making Unit (2 units :Twisted handle& flat handle) |
|
| 3 | Handle sticking unit | |
| 4 | Paper bag forming unit | |
| 5 | Finished bag collection unit | |
| 6 | Main Machine Electrical and electronic control | |
Our products are sold all over the world, you can rest assured.
