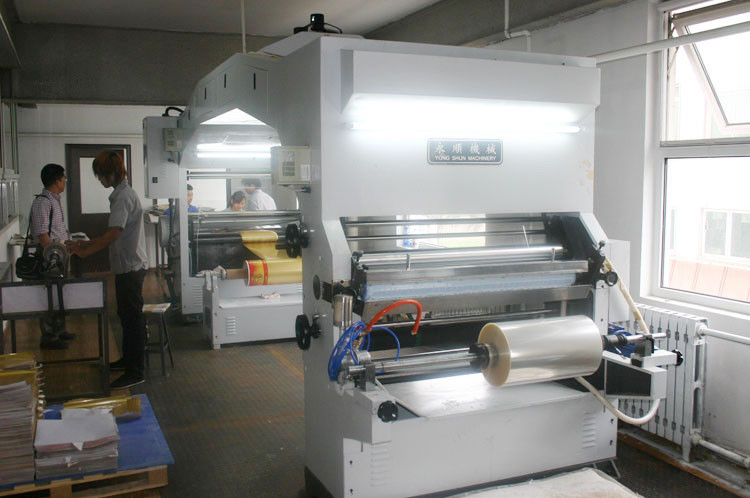

Multifunctional Plastic Film Lamination Machine For PP Woven Roll Fabric


Multifunctional lamination machine for PP woven roll fabric and plastic films

Specifications

1.Laminating speed:150m/min
2.Non-stop Auto Material exchange
3.EPC correction/Auto tension
4.CE certification



Application
This machine is used for laminating roll materials such as BOPP, PET, CPP, PE, aluminum foil and paper.

A.machine technical parameter


No

Description

Technical

Remark

1

Web for laminating

BOPP,PET,NYLON,CPP,CPE,AL,PAPER AND SO ON



2

Gluewater

water-solubility gluewater



3

Web layer

2 layes



4

Width for web

400-1000mm

Roller width:1080mm

5

Rewind diameter

600mm



6

Unwind diameter

600mm



7

Oven temp

50°C-100°C

Auto- control

8

Laminating temp

30°C-100°C

Auto- control

9

Total power

85kw



10

Dimension

8500×1700×2500mm



11

Total weight

6500kg





B.machine structure
Unwind system


No

Description

Technical

Remark

1

No.1Unwind frame

singlehanded



2



Photo electricity EPC

Rectify range ±50mm,precision: ±0.5mm

3

No.2Unwind frame

singlehanded



4



EPC by manual



5

Tension

Magnetic powder

Auto control ,range 0~200N/M

6

Pneumatic roller

74mm

Unwind


Gluewater coating system


No

Description

Technical

Remark

1

Anilox roller length

1100mm,φ165mm



2

Press roll

φ120mm

nitride butadiene rubber, hard 70-75 degree

3

Gluewater Pan

Stainless steel

Adjustable by handle

4

Blade

Three position control

Remove type ,move range ±10mm

5

Press roll

Move by air cylinder

Air pressure adjustable

6

Drive motor

Inverter control



7

Guide roller

Hard metal

1080mm, φ100mm


Oven system


No

Description

Technical

Remark

1

Oven length

8500mm

Three temp zone

2

Oven temp

0~100°C

Digital type

3

Infrared heating

Stainless steel heating

Reflect by stainless steel board 60kw

4

Blower power

1.5kw

3pcs

5

Guide roller motor

1.5kw



6

windy system

Recycle



7

Oven structure

Keep temp



laminating system

No

Description

Technical

Remark

1

Laminating roll

1080mm,φ320mm

Surface hardening and tempering, plating with chrome

2

Laminating roll

1080mm,φ220mm

Silicon rubber ,hard :80 degree

3

Roll heating

Electric

8kw ,digital control

4

Remove motor

5.5kw

Inverter control

5

Rolls move

Air cylinder




Rewind system


No

Description

Technical

Remark

1

Rewind diameter

600mm



2

Pneumatic roll

74mm



3

Tension control

Torque motor



4

EPC

By manual
