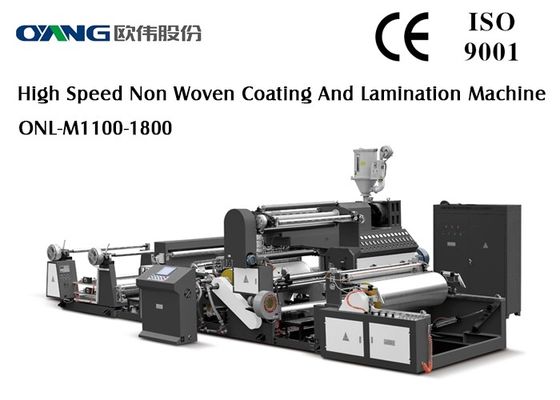

Non - Stop Auto Material Exchange Multifunctional Laminating Film Machine 150m/Min
1.Laminating speed:150m/min
2.Non-stop Auto Material exchange
3.EPC correction/Auto tension
4.CE certification
Application
This machine is used for laminating roll materials such as BOPP, PET, CPP, PE, aluminum foil and paper.
A.machine technical parameter
|
No |
Description |
Technical |
Remark |
|
1 |
Web for laminating |
BOPP,PET,NYLON,CPP,CPE,AL,PAPER AND SO ON |
|
|
2 |
Gluewater |
water-solubility gluewater |
|
|
3 |
Web layer |
2 layes |
|
|
4 |
Width for web |
400-1000mm |
Roller width:1080mm |
|
5 |
Rewind diameter |
600mm |
|
|
6 |
Unwind diameter |
600mm |
|
|
7 |
Oven temp |
50°C-100°C |
Auto- control |
|
8 |
Laminating temp |
30°C-100°C |
Auto- control |
|
9 |
Total power |
85kw |
|
|
10 |
Dimension |
8500×1700×2500mm |
|
|
11 |
Total weight |
6500kg |
|
B.machine structure
Unwind system
|
No |
Description |
Technical |
Remark |
|
1 |
No.1Unwind frame |
singlehanded |
|
|
2 |
|
Photo electricity EPC |
Rectify range ±50mm,precision: ±0.5mm |
|
3 |
No.2Unwind frame |
singlehanded |
|
|
4 |
|
EPC by manual |
|
|
5 |
Tension |
Magnetic powder |
Auto control ,range 0~200N/M |
|
6 |
Pneumatic roller |
74mm |
Unwind |
Gluewater coating system
|
No |
Description |
Technical |
Remark |
|
1 |
Anilox roller length |
1100mm,φ165mm |
|
|
2 |
Press roll |
φ120mm |
nitride butadiene rubber, hard 70-75 degree |
|
3 |
Gluewater Pan |
Stainless steel |
Adjustable by handle |
|
4 |
Blade |
Three position control |
Remove type ,move range ±10mm |
|
5 |
Press roll |
Move by air cylinder |
Air pressure adjustable |
|
6 |
Drive motor |
Inverter control |
|
|
7 |
Guide roller |
Hard metal |
1080mm, φ100mm |
Oven system
|
No |
Description |
Technical |
Remark |
|
1 |
Oven length |
8500mm |
Three temp zone |
|
2 |
Oven temp |
0~100°C |
Digital type |
|
3 |
Infrared heating |
Stainless steel heating |
Reflect by stainless steel board 60kw |
|
4 |
Blower power |
1.5kw |
3pcs |
|
5 |
Guide roller motor |
1.5kw |
|
|
6 |
windy system |
Recycle |
|
|
7 |
Oven structure |
Keep temp |
|
laminating system
|
No |
Description |
Technical |
Remark |
|
1 |
Laminating roll |
1080mm,φ320mm |
Surface hardening and tempering, plating with chrome |
|
2 |
Laminating roll |
1080mm,φ220mm |
Silicon rubber ,hard :80 degree |
|
3 |
Roll heating |
Electric |
8kw ,digital control |
|
4 |
Remove motor |
5.5kw |
Inverter control |
|
5 |
Rolls move |
Air cylinder |
|
Rewind system
|
No |
Description |
Technical |
Remark |
|
1 |
Rewind diameter |
600mm |
|
|
2 |
Pneumatic roll |
74mm |
|
|
3 |
Tension control |
Torque motor |
|
|
4 |
EPC |
By manual |
