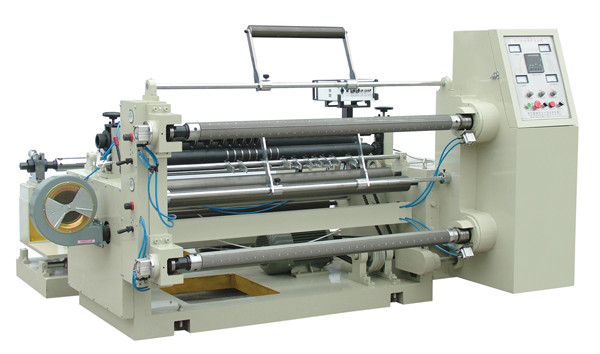

PLC air shaft high speed slitting and rewinding machine for non woven fabirc

PLC air shaft high speed slitting and rewinding machine for non woven fabirc

  • High Light

    slitter rewinder machine

    ,

    paper slitter rewinder machine

  • Place of Origin
    CHINA`
  • Brand Name
    OUNUO
  • Certification
    CE ISO9001:2000
  • Minimum Order Quantity
    1 SET
  • Packaging Details
    WOODEN CASE PACKING
  • Delivery Time
    20 DAYS
  • Payment Terms
    T/T ,L/C
  • Supply Ability
    60SET/MONTH

PLC air shaft high speed slitting and rewinding machine for non woven fabirc





PLC control air shaft high speed slitting and rewinding machine for non woven fabirc



1. Application


This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge, separate and cut material according to different requirements during production.



2.Characteristics:



1,The complete machine is equipped with imported PLC, and with a touch screen and man-machine interface in operation.

2,It has the functions of buffering when machine start work, can count meters and stop automatically.

3,Adopt full automatic tension controller and powder magnetic brake for unwinding which can keep tension of unwinding invariable

4,Using taper tension controlling for frequency converter of rewinding .

5,Adopt vector frequency converter motor for traction transmission, which can be controlled with invariable line speed

6,Top air style shaftless fixing and liquid pressure lifting structure are adopted for raw material loading and discharging , to lighten work force.

7,.Adopt two manner of vertical cutter and round cutter for slitting

8,Adopt synchronous motor, high precision ball bearing screw motor and Shanghai made magic eye for unwinding web guiding which can move 120mm, auto web guiding make slitting more accurate and dapper.

9, Equipped with side waste scrap air-blowing sending air-blowing sending





Main technical parameters:



Roller width

1300mm



Unwinding diameter

1000mm

Rewinding diameter

600mm

Slitting width

50-1300mm

Slitting speed

240m/min

Slitting accuracy

+_0.2mm

Total power

10.5KW

Overall dimensions

2600*2170*1860mm

Machine weight

3000KG

Voltage

3 phase 380V, 50HZ
