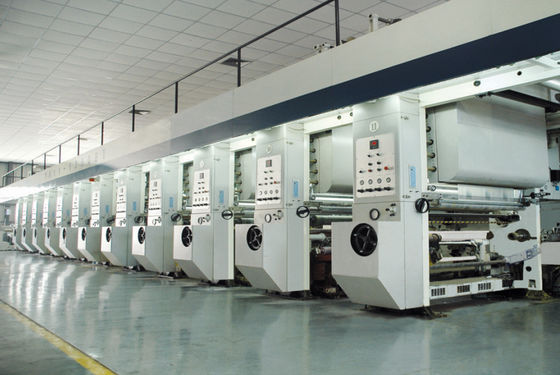

ASY-ZD High Speed Computer Control Rotogravure Printing Machine for BOPP and OPP film printing
Computer Combination Gravure Printing Machine
This machine is used for cellophane, BOPP, PET, PVC, PE, aluminium foil and web with good printing performance for multi-color continuous printing.
1. The whole machine is fixed by permutation combination, according to the customers' requirement, the printing color unit can be increased or decreased and the cover printing mechanism can be added as well.
2. The traction and rewinding adopt frequency conversion and synchronous speed regulation.
3. Each unit of computer flashed system is controlled by separate micro-processor. It can adjust the flashed deviation quickly and precisely.
4. General shaft style installment.
5. Display of flashed deviation, correcting of system comprehensive deviation as superdifference alarming function.
6. Double photoelectrical checking improves the whole checking and speed adjustment.
7. Rewinding and discharging traction are adopted with full automatic, tension controller and magnetic powder brake and clutch to control.
8. The winding adopts frequency conversion traction, while the pressing roller adopts pneumatic componevts to control.
9. Printing roller and discharging traction pressing roller are both adopted with pneumatic unit to control.
10. Pneumatic back pressure shifting blade.
11. Ink circulating system.
12. Gas expansion type loading and unloading shaft.
13. Unwinding and rewinding are both double working mechanisms to meet non-stop roll-change.
2.Main Technical Parameters:
|Printing length||240-1100 mm||240-1100 mm||240-1100 mm|
|Printing width||600 mm||800 mm||1000 mm|
|Printing speed||≤110 m/min||≤110 m/min||≤110 m/min|
|Precision of register||≤0.12mm||≤0.12mm||≤0.12mm|
|Gross power||46 kw||58 kw||72 kw|
|Weight of machine||Approx 9000 kg||Approx 10000 kg||Approx 12000 kg|
