shopping bag Rotogravure Printing Machine for BOPP / PET / PE film label printing

shopping bag Rotogravure Printing Machine for BOPP / PET / PE film label printing

  • High Light

    Rotogravure Printing Machinery

    ,

    Gravure printing machinery

  • Place of Origin
    CHINA
  • Brand Name
    OUNUO
  • Certification
    CE,ISO9001:2008
  • Model Number
    YAD-A
  • Minimum Order Quantity
    1 SET
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    30 DAYS
  • Payment Terms
    T/T,L/C
  • Supply Ability
    10 SET/MONTH

shopping bag Rotogravure Printing Machine for BOPP / PET / PE film label printing





High-speed Seven Motor Computerized Register Printing Machine for shopping bag



Application:



This machine is suitable for BOPP, PET,PE, CPP, PVC and combined film and paper with same properties.



Features:



1,Seven motor synchronization speed control; PLC system

2,Picture Inspection

3,Auto-register and Per-register system

4,Non-stop Auto Material exchange

5,place Swim Arm Tension Control

6,2 place per-dry heating & assistant dry hearting at the unwinding and rewinding part

7,Shaft-less air cylinder device

8.PU rubber roller



Technical Parameters:

NOTE: The specification is based on 6 colors

Model

ONLY-6800A

Web width

800mm

Printing speed

max200m/min

Print cylinder diameter

100-350mm

Rolling material diameter.

600mm

Print cylinder cross adjustable

20mm

Print cylinder longitudinal adjustable

1M

Registering accuracy

±0.12mm

Total power

100kw

Weight

20000kg

Overall dimensions(L×W×H)(mm)

12800*3200*2800mm









Winder device:

Unwinder and rewinder is featured by the independent driver rotary double-post. The printing materials is fastened by the air shaft, it is safe and reliable, Auto splicing in high-speed.

Cylinder loading system:

Shaft-less for the time-saving and conveniency.

Color register system:

Vertical automatic register and pre-register device, improve accuracy of registration.,

Doctor Blade system:

The movement of doctor blade is on the double-shaft by the independent electric motor.

Drying system:

Enclosed air circulatory heating oven, Outlay electrical heater and automatic temperature controller

Machine Control system:

Winder , in-feet and out-feet use import PLC control seven AC vector converter motors and Four closed-loop tension control system, the main electronic and Pneumatic part are imported.

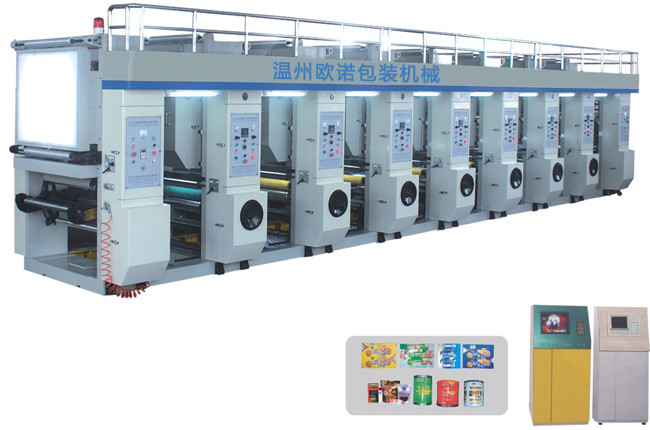

shopping bag Rotogravure Printing Machine for BOPP / PET / PE film label printing 0
