Full Automatic Flexo Four Color Printing Machine For Paper / Film / Non Woven

Full Automatic Flexo Four Color Printing Machine For Paper / Film / Non Woven

  • High Light

    flexo printing machine

    ,

    Flexo Printing Machinery

  • Type
    Flexographic Printer
  • Condition
    New
  • Automatic
    Full Automatic
  • Material
    Roll Material
  • PLC
    Taiwan
  • After-sales Service
    Perfect
  • Place of Origin
    Zhejiang
  • Brand Name
    OUNUO
  • Certification
    CE
  • Model Number
    YT-61200
  • Minimum Order Quantity
    1 SET
  • Packaging Details
    Shrink film and wooden case packing
  • Delivery Time
    30 days
  • Payment Terms
    T/T,L/C at sight
  • Supply Ability
    50 set/month

Full Automatic Flexo Four Color Printing Machine For Paper / Film / Non Woven



Full Automatic Flexo Four Color Printing Machine For Paper / Film / Non Woven



Quick Detail:

This Full Automatic Flexo Four Color Printing Machine For Paper / Film / Non Woven is design for Plastic film and Non Woven Fabric printing , this machine adopting photosensitive resin as printing plate, is commonly known as the flexographic printing machine. It is suitable for printing packing materials such as non woven fabric ,polyethylene, polypropylene bag, cellophane and roll paper, etc.There have two color ,four color and six color available. This machine is easy operation.



Description:

Full Automatic Flexo Four Color Printing Machine For Paper / Film / Non Woven

1. Easy operation, flexible starting, accurate color register.

2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high speed rotation, it will automatically break circuit when the machine stops.
6.360° continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.



Applications:

This machine can printing non woven fabirc ,roll paper,plastic film.

LDPE: 28 ~ 100μm   LLDPE: 30 ~ 100μm HDPE: 25 ~ 100μm     CPP: 20 ~ 60μm PP: 23 ~ 65μm   NY: 20 ~ 50μm     PETP: 16 ~ 60μm        OPP: 18 ~ 70μm BOPP: 17 ~ 60μm    OPA: 20 ~ 60μm   Plating film: 30 ~ 80μm   Aluminum: 25 ~ 200μm Cellophane: 30 ~ 100g/m2   Paper : 30 ~ 350g/m2     Wrapping paper : 30 ~ 100g/ m2





Specifications:



Type

YT-4800

YT-41000

YT-41200

Max.Effective Printing Width

560mm

760mm

960mm

Max.Web Width

800mm

1000mm

1200mm

Max.Printing Speed

50m/min

50m/min

50m/min

Max.Mechanical Speed

60 m/min

60 m/min

60 m/min

Max.Diameter of Roll Material

450mm

450mm

450mm

Internal Diameter of Roll Core

76mm

76mm

76mm

Rang of Repeat Printing Length

191-914mm

191-914mm

191-914mm

Accuracy of Registration

±0.5mm

±0.5mm

±0.5mm

Plate Thickness

2.38mm

2.38mm

2.38mm

Heating Power

7Kw

10.5Kw

14Kw

Total Power

11.5Kw

15Kw

18.5Kw

Weight of Machine

3000kg

3500kg

4000kg

Overall Dimension

L4200×W1600×H2400mm

L4300×W1900×H2500mm

L4300×W2100×H2500mm





Competitive Advantage:



1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed;

noise is decreased

2. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing

treatments are conducted; low resistance and small flop.

3. The special made modulus angular gears adopted; accurate printing size and full printing specifications

( 6.35mm is a spec)

4. With single doctor blade and circulating pump

5. The grouped and controlled bottom roller processed with Germany particular steel materials processed with

special techniques and electrically gilded with 0.1mm hard chromium protective layers

6. With hard chroming anilox roll

7. The machine use hydraulic printing-roll loading system which can automatically load printing rolls and run

inks after the machine alarm working signal.

8. Good quality printing

9. Brilliance color appearance.

10. The operation is easier and more convenient,the register is more accurate,and the lifespan is also longer

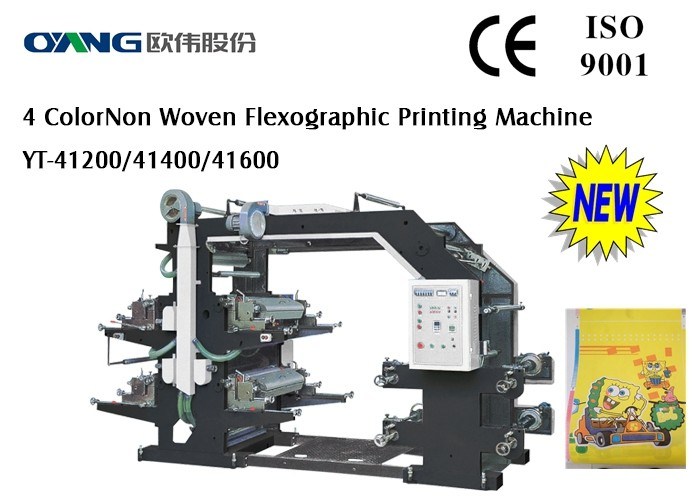

Machine Pictures:

Full Automatic Flexo Four Color Printing Machine For Paper / Film / Non Woven 0



Printing Samples:

Full Automatic Flexo Four Color Printing Machine For Paper / Film / Non Woven 1
