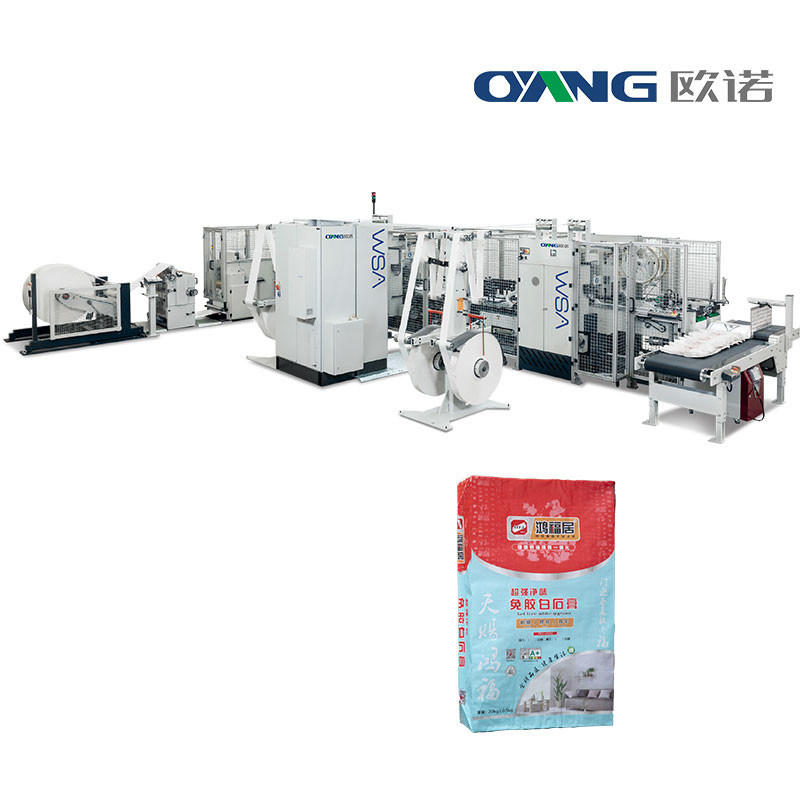

High Speed Valve Bag Making Machine Powder Laminated Pp Paper Cement With PLC Controller

High Speed Valve Bag Making Machine Powder Laminated Pp Paper Cement With PLC Controller

  • High Light

    Powder Laminated Valve Bag Making Machine

    ,

    Pp Paper Cement Valve Bag Machine

    ,

    PLC Controller Valve Bag Machine

  • Sack Width
    300-600mm
  • Sack Length
    410-910mm
  • Bottom Width
    80-180mm
  • Bottom Center Distance
    310-680MM
  • Speed
    90-120pcs/min
  • Power
    105kw
  • Equipment Size
    12m*7.5m*3m
  • Operating Pressure
    6-7bar
  • Place of Origin
    China
  • Brand Name
    Ounuo
  • Certification
    CE
  • Model Number
    ON-WSA
  • Minimum Order Quantity
    1set
  • Price
    USD500,000-550,000 SET
  • Packaging Details
    standard packing
  • Delivery Time
    90 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    20 sets per month

High Speed Valve Bag Making Machine Powder Laminated Pp Paper Cement With PLC Controller

High Speed 120pcs/min 25kg&15kg Powder Bag|Laminated pp+Paper Cement Valve Bags Making Machine With PLC Controller



Valve bagging is when a bag is filled using a specialized machine. The machine uses a spout placed in or near the opening of the bag. A measured amount is placed in each bag. This can be done in a fully automated or semi-automated manner. This ensures consistency in quantity and minimizes lost product.


The benefits of these machines are numerous and span multiple industries. The biggest benefit is the volume of bags that can be filled and closed per hour. The output is significantly higher than if done by an employee. This increase in output translates to higher profit by filling orders more quickly. Businesses converting to this method often find the cost of the machine is quickly covered and a return on investment is recognized very soon.



1.Machine specification:

I.Technical Parameter
Sack width 300-600 mm
Sack length 410-910 mm

Bottom width(B > 160 mm)

80-180 mm
Bottom center distance 310-680 mm
Main fabric cutting length 510-1090 mm
Fabric width 55-80cm
Coating Weight(15% PE, 85% PP) 17-30 g/m²
Speed 90-120 个/min
2.Material Specification
2.1Tubular fabric requirement
Material specification 2.5-5 mm PP tapes
Fabric Weight 55-80 g/m²
Coating Weight 17-30 g/m²
Coating adhesion Min. 8.1N/30mm
Width tolerance ±7 mm

Weight tolerance (fabric + coating)

±3 g/m²
Over coating Max. 5mm
2.2Flat fabric for patches
Fabric Weight 55-80 g/m²
Coating Weight(15% PE, 85% PP) 17-30 g/m²
Coating adhesion Min. 8.1N/30mm
Width tolerance ±3 mm

Weight tolerance (fabric + coating)

±3 g/m²

Electrical,water,air requirement

Power 105 KVA

Water consumption

(Max 18°C, 4 bar)

2m³/h
Operating pressure 6-7 bar
Air consumption 120 m³/h
Air compressor Prepared by customer




2.Machine Drawing

High Speed Valve Bag Making Machine Powder Laminated Pp Paper Cement With PLC Controller 0





3.Valve sack bag samples

High Speed Valve Bag Making Machine Powder Laminated Pp Paper Cement With PLC Controller 1
